SKU ARC-180DC

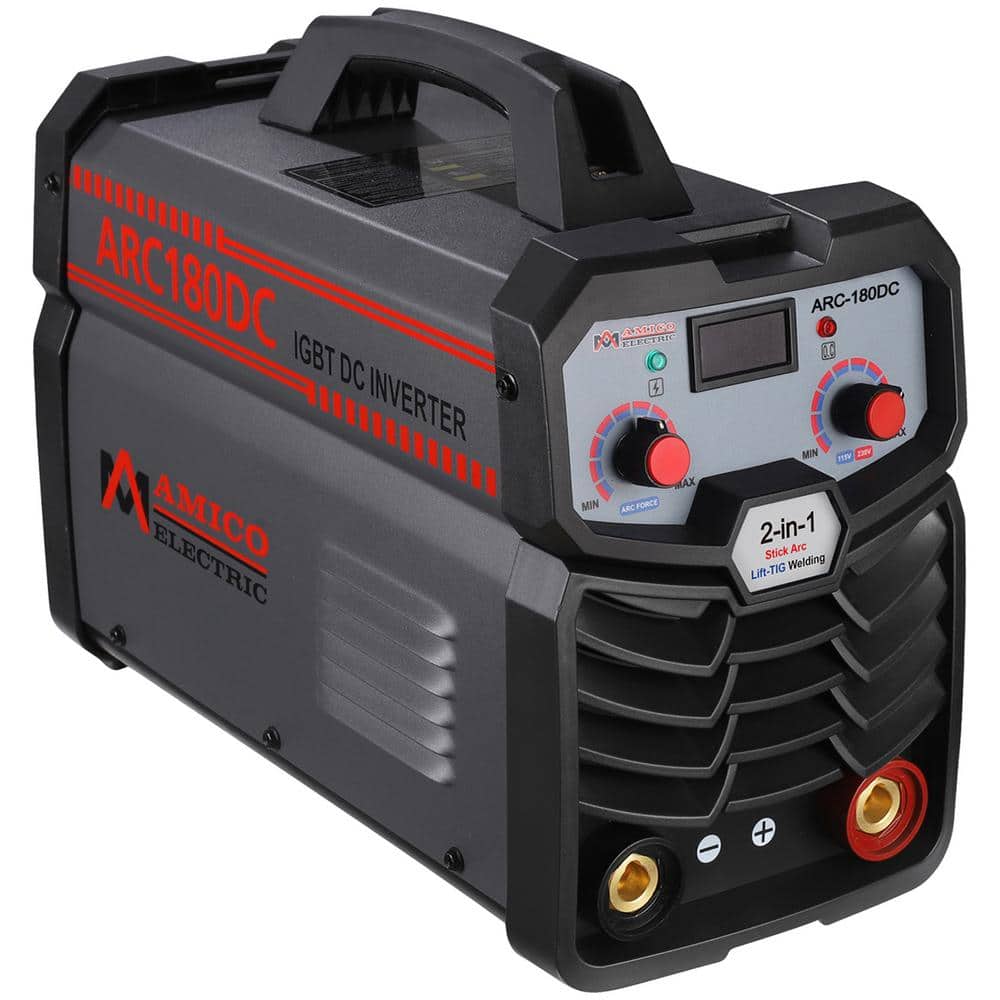

ARC-180DC is a professional Stick Arc with Lift-TIG welding machine using the advanced inverter technology. The welding power source can provide a stronger, more concentrated and more stable arc. When the stick and work-piece become shorter, the response will be faster. This means it is easier to design it as a welding machine with different dynamic characteristics, and it can even be adjusted as needed to make the arc softer or harder. Specifications: Rated Input Voltage: AC 100V-250V, Frequency: 50Hz & 60Hz; Rated Input Power: 230V/7.8KVA/34A & 115V/4.2KVA/36A, Current Range: 230V/180A & 115V/140A; Force Current: 230V/0-50A & 115V/0-15A, Rated Duty Cycle: 230V/80%@180A & 115V/80%@140A; Nominal DC Open Circuit Voltage: 85-Volt; Usable Electrode: 230V/1/16-3/16 in. & 115V/1/16-5/32 in., Power Factor: 0.93; Dimension: 17.0 x 7.5 x 12.0 in., Net Weight: 16.5 lbs., Packaging Size: 18.97 x 10.12 x 13.27 in., Packaging Weight: 22.05 lbs. Packing List: ARC-180DC Pro. Stick Arc Welding Machine; 7-feet Power Cord & 6-50P Plug (on the machine); 230V to 110V Power Adapter; 300A Electrode Holder, 10-feet Cable, 35-50mm Connect; 300A Work Clamp, 10-feet Cable, 35-50mm Connect; 4 Pieces Electrode of 5/32 in. & 1/8 in., Owner's Manual.
