SKU MMA-200

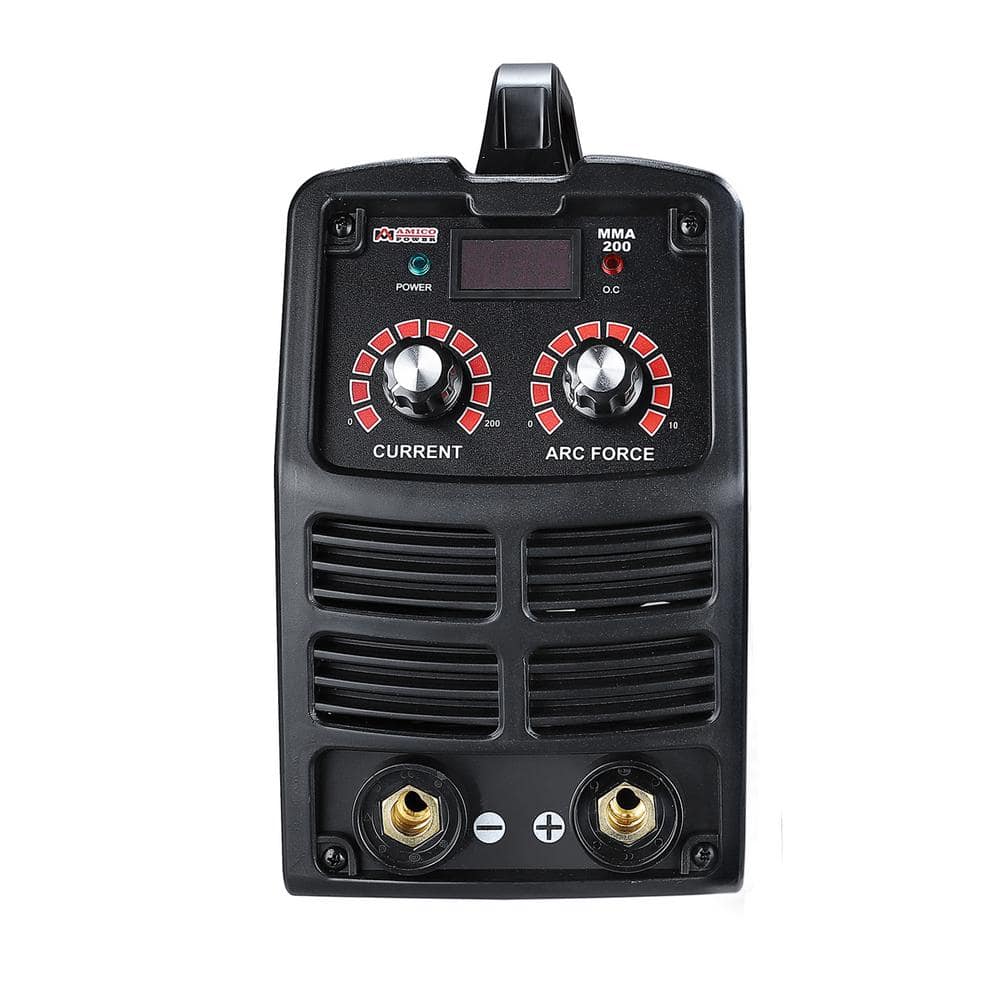

MMA-200 is a rectifier adopting the most advanced inverter technology. welding power source can offer stronger, more concentrated and more stable arc. when stick and work piece get short, its response will be quicker. it means that it is easier to design into welding machine with different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder. Specifications: Rated Input Voltage: AC 110-Volt & 230-Volt; Frequency: 60Hz/ 50Hz; Rated Input Power: 230-Volt/10.6KVA/46 Amp & 110-Volt/6.2KVA/56 Amp; Current Range: 230-Volt/200 Amp & 115-Volt/160 Amp; Force Current: 0-60 Amp & 0-10 Amp; Rated Duty Cycle: 180 Amp at 60%; Nominal DC Open Circuit Voltage: 75-Volt.; Usable Electrode, 230-Volt: 1/16 in. - 3/16 in. & 115-Volt: 1/16 in. - 5/32 in.; Power Factor: 0.93; Dimension: 16 x 6.5 x 12 in.; Net Weight: 19 lbs. Packaging Size: 15.72 x 8.52 x 12.85 in.; Packaging Weight: 27 lbs. Packing List: MMA-200 Stick Welding Machine; 8-feet Power Cord & N6-50P Plug (on the machine); 10 ft. 300 Amp Electrode Holder Assembly, 35-50 mm Lead Dines; 10 ft. 300 Amp Work Clamp Assembly, 35-50 mm Lead Dines; 230-Volt to 120-Volt Power Adapter; 2 Pieces Electrode of 1/8 inch; Owner's Manual.
