SKU ST-165

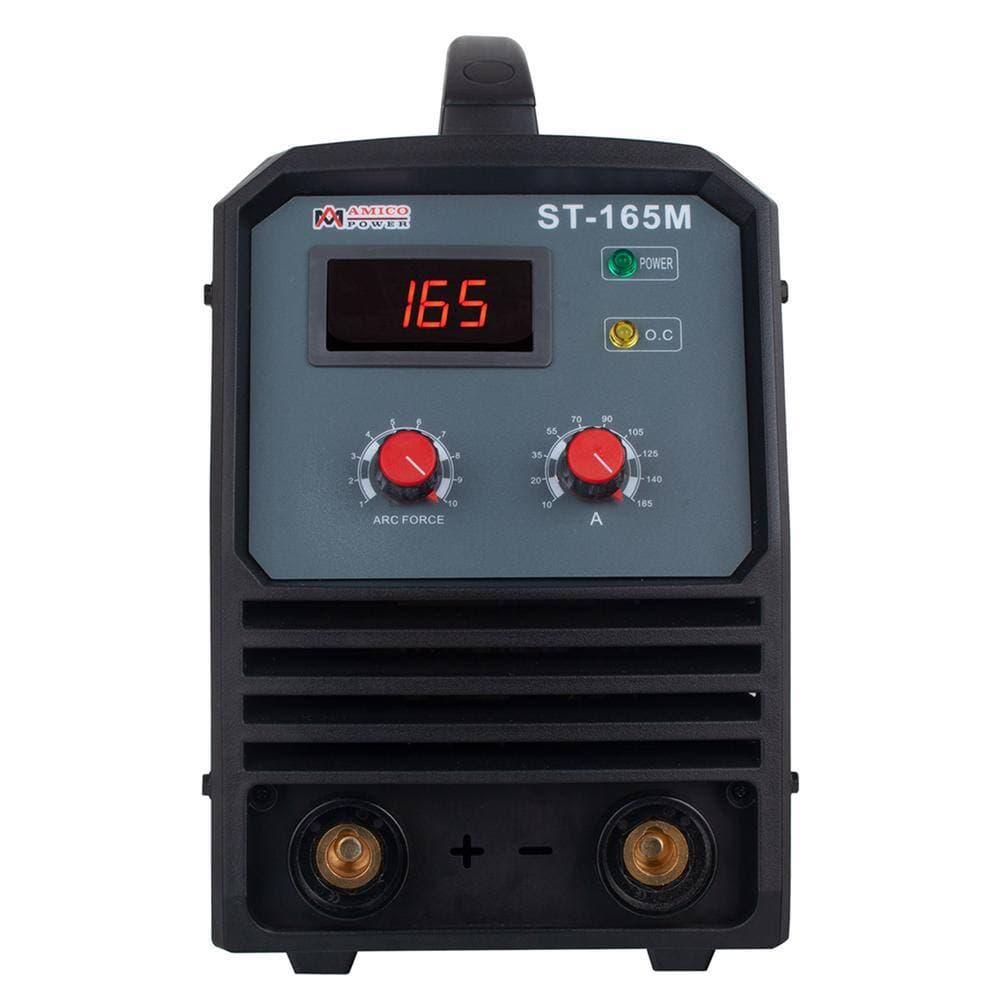

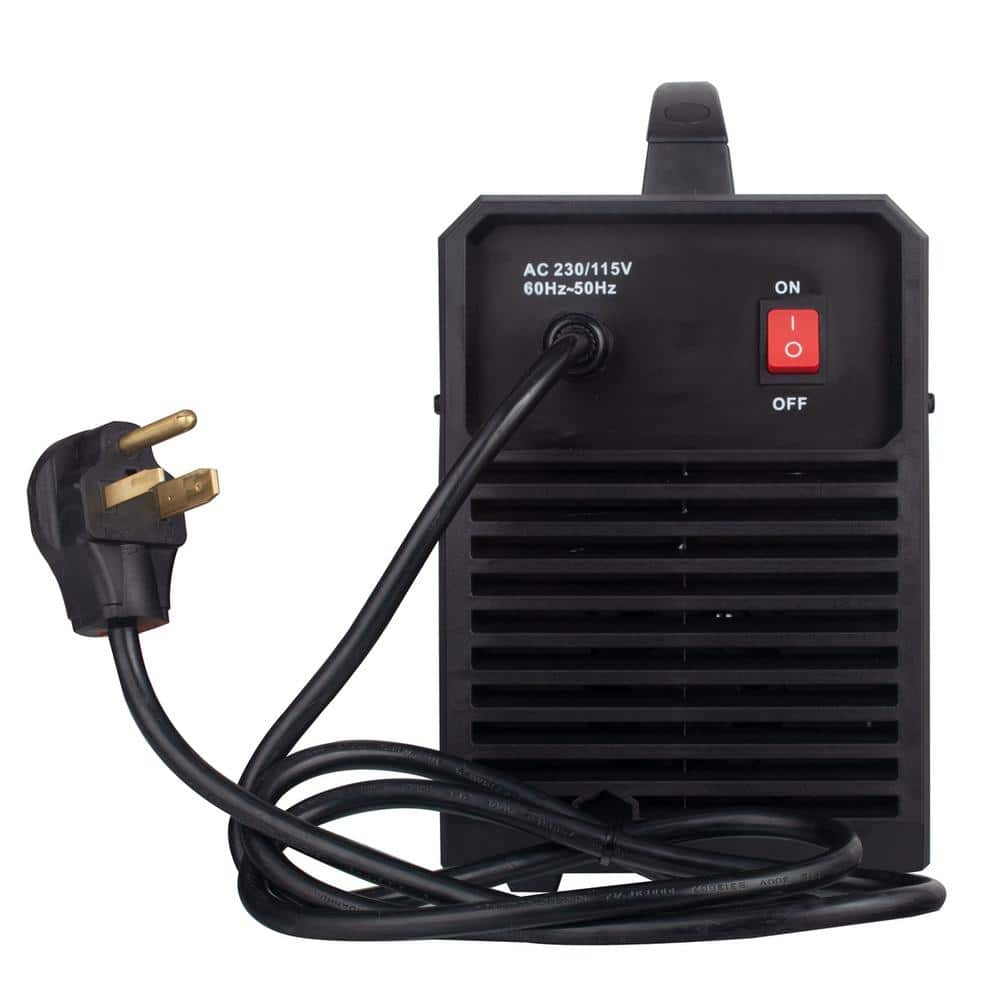

ST-165M is a rectifier incorporating the most advanced inverter technology. The welding power source can offer a more reliable, more concentrated, and more stable arc. When the stick and work-piece shorten, the response will be quicker. The welder uses a variety of electrodes, such as acid electrodes, alkaline electrodes, and cellulose electrodes (6010, 6011, 6013, 6014, 7014, 7018, etc.). The machine also works efficiently with generators. Power cords can properly function extended up to 700 feet. Specifications: Model: ST-165M. Power Supply: AC 95-Volt to 260-Volt, 50 Hz/60 Hz, 1- Phase. Rated Input Current: 230-Volt/31 Amp and 115-Volt/39 Amp, Output Current Range: 230-Volt/20 Amp to 165 Amp and 115-Volt/20 Amp to 115 Amp. Force Current: 1 Amp to 40 Amp and 1 Amp to 10 Amp. Rated Duty Cycle: 60% at 165 Amp. Nominal DC Open Circuit Voltage: 85-Volt. Usable Electrode, 230-Volt: 1/16 in. to 5/32 in. and 115-Volt: 1/16 in. to 1/8 in. Power Factor: 0.93. Dimension: 15.72 in. x 8.52 in. x 12.85 in. Net Weight: 17.0 lbs. Packaging Size: 20.0 in. x 12.6 in. x 14.8 in. Packaging Weight: 27.0 lbs. Packing List: ST-165M Stick Arc Welding Machine. 7 Ft. Power Cord Use "N6-50P" Plug (on the machine). 10 Ft. 300 Amp Electrode Holder Assembly, 10 Ft. 300 Amp Work Clamp Assembly. 230-Volt to 110-Volt Power Adapter. 2 Pieces Electrode of 1/8 in. 2 Pieces Electrode of 3/32 in. Owners Manual.
