SKU APC-70HF

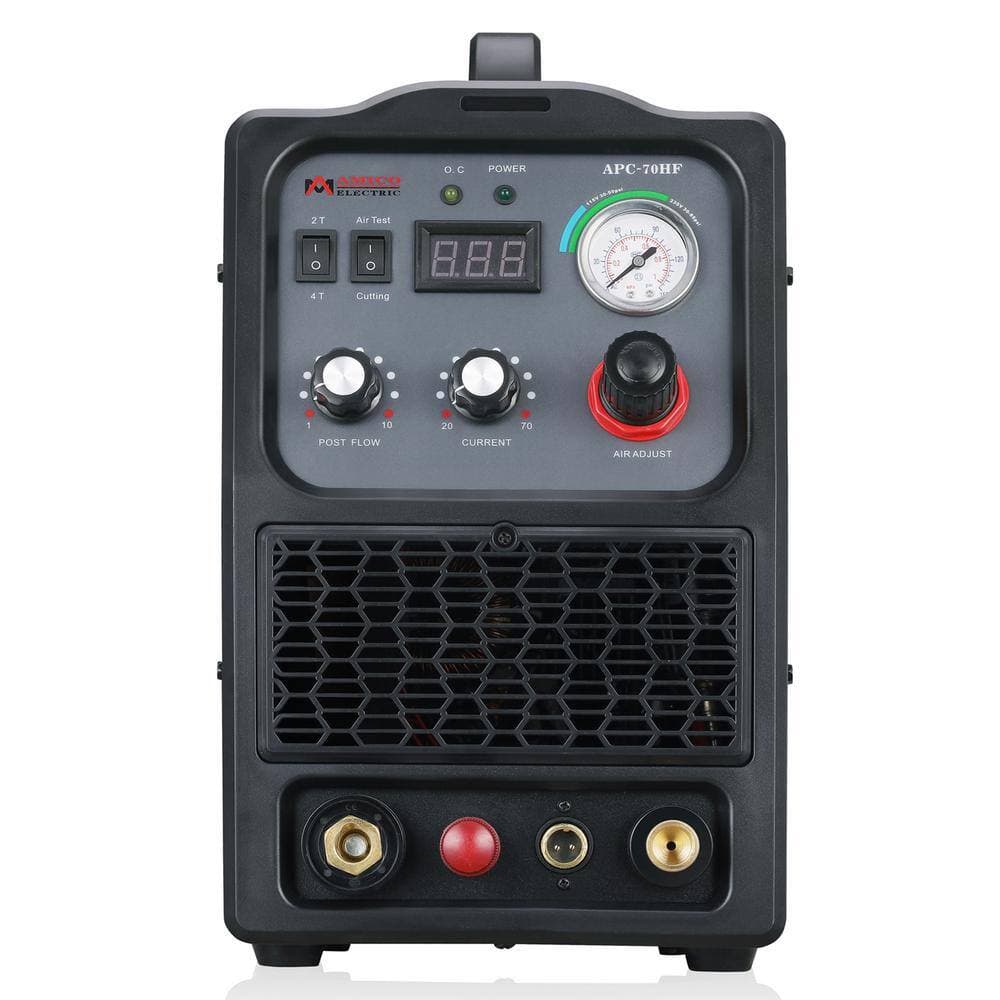

APC-70HF is the newest model of the professional digital control high frequency start plasma cutting machine with built-in advanced inverter technology. Its high-quality design was manufactured in accordance with industrial level standards. The machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument and air pressure regulator are installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of APC-70HF air plasma cutting machine is 1.2 inch, and the maximum cutting thickness is 1.5 inches. Specifications - Supply Power: AC 90V-300V, 50Hz/60Hz; Rated Input Current: 115V/230V/55 Amp; Cutter Current Range: 230V/20-70 Amp, 115V/20-50 Amp; Nominal DC Open Circuit Voltage: 265-Volt; Output Voltage: 108-Volt; Duty Cycle @ 104F(40c): 80% @ 70 Amp; Gas Supply: Clean Dry Oil-Free Air; Gas Pressure Range: 30-90 psi; Recommended Gas Inlet Flow: 6.5scfm @ 90 psi; Standard Severance Cutting Thickness: 1.2 in.; Maximum Severance Cutting Thickness: 1.5 in.; Movement Speed: 15.0 in./min; Net Weight: 31.0 lbs.; Product Size: 20.0 x 8.7 x 15.7 in. Power Cord is 8 Feet Long; US Power Plug is XN650P-B (N6-50P). Package Included - AP-80 13-Feet / 80-Amp Plasma Torch; 10-Feet 300A Work Clamp; 230V to 115V Power Adapter.
