SKU SPI03309VPK

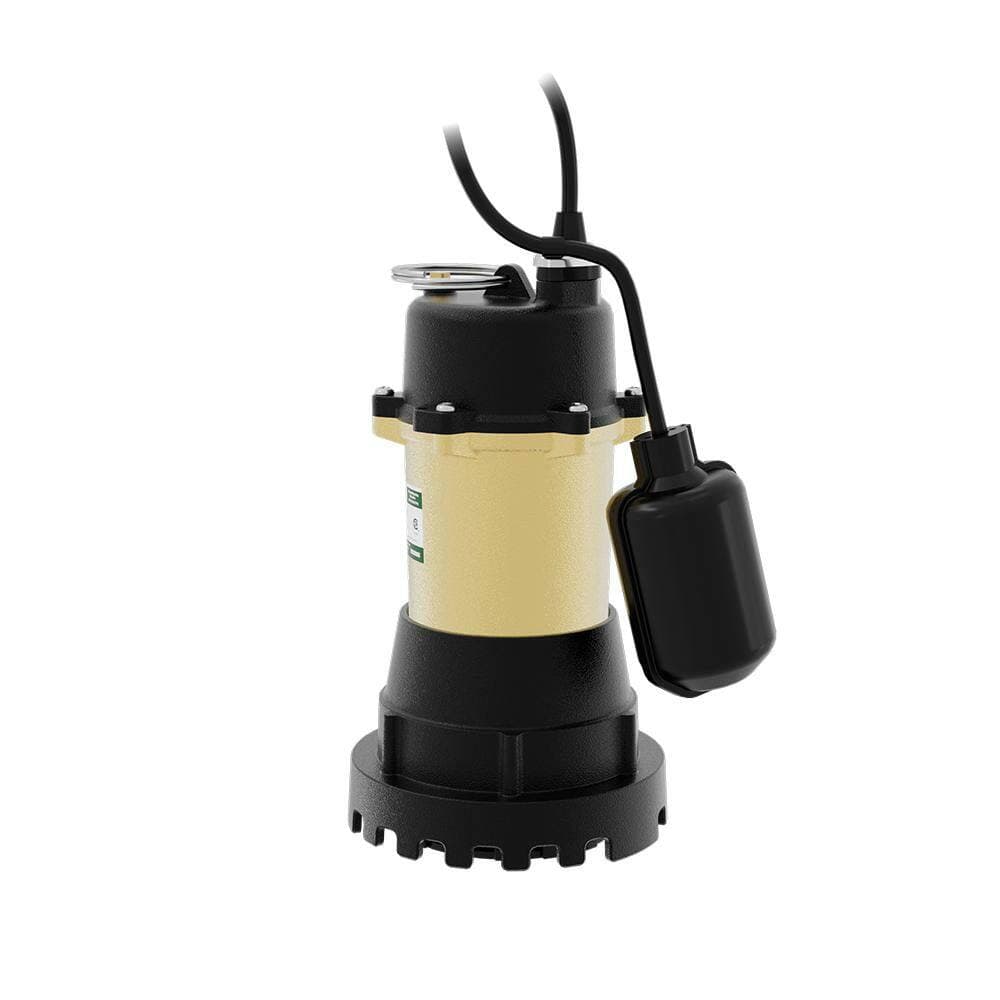

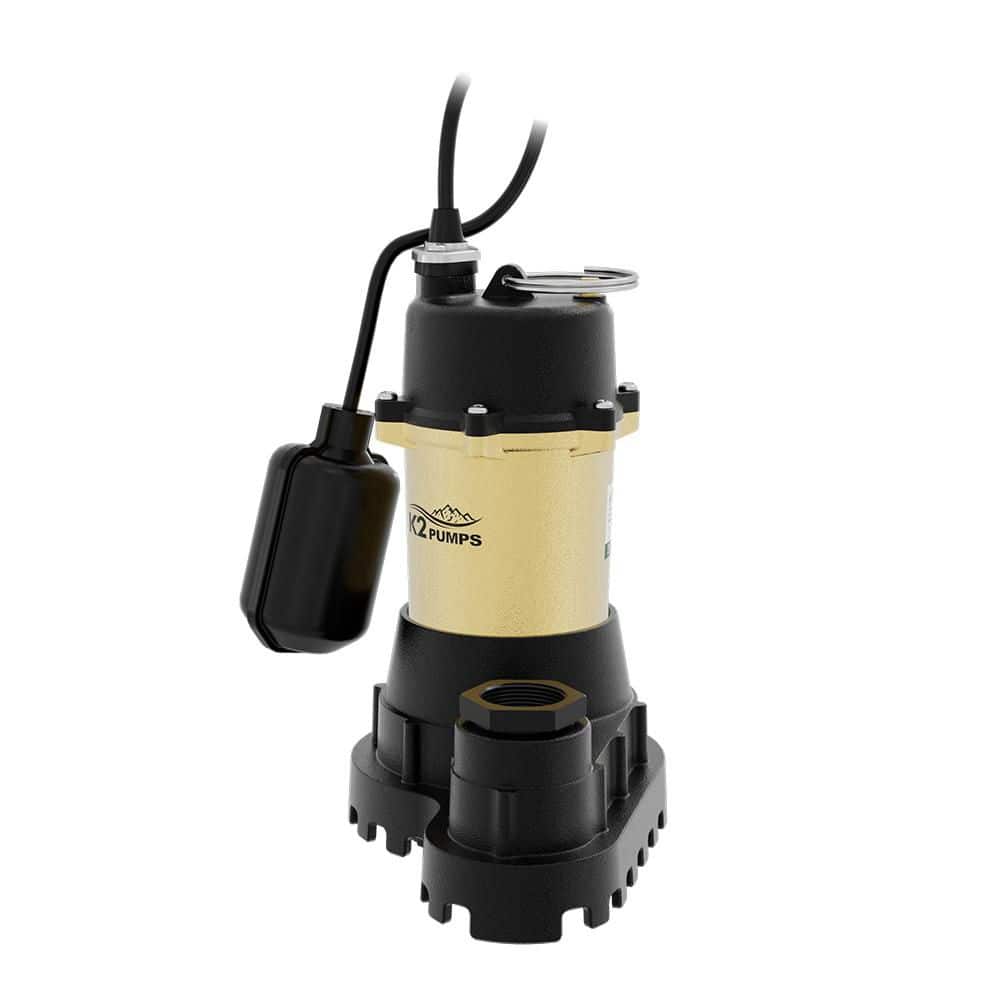

Unbranded 1/3 HP Heavy-Duty Cast Iron Sump Pump with Piggyback Vertical Switch

The K2 1/3 HP Submersible Sump Pump is designed for sump and light effluent applications. The non-clog vortex impeller enables the pump to easily pass 1/2 in. spherical solids. The pump is constructed of heavy-duty cast iron and comes with a piggyback vertical float switch for reliable maintenance-free operation and easy replacement. The pump can fit into a 10 in. diameter or larger sump basin.

Heavy-duty cast iron construction for rugged submersible pumping
Piggyback vertical float switch ensures automatic operation
Nonclog vortex impeller handles up to 12 in. solids

Specifications

Model #: SPI03309VPK
Voltage: 115v
Features: Bottom/End Suction,Corrosion Resistant,Self-Priming,Solids Handling,Thermal Overload Protection
Pack Size: 1
Internet #: 339545960
Returnable: 7-Day
Store SKU #: 1015057749
Amperage: 5 A
Housing Material: Cast-Iron
Pump Switch Type: Vertical
Cord Length: 10 ft
Impeller Material: Reinforced Thermoplastic
Product Depth: 8.5 in
Product Width: 9.13 in
Vertical Lift: 28 ft.
Product Height: 12.63 in
Product Weight: 19.5 lb
Manufacturer Warranty: 3 years
Maximum Pressure: 12.12 PSI
Switch-On Height: Medium-Low (5-8 in.)
Maximum Horsepower: 1/3
Certifications and Listings: CSA Certified
Minimum Sump Basin Diameter: 10 7/8 or Less
Maximum Working Temperature: 130 F
Minimum working temperature: 32 F
Outlet Diameter Connection: 1-1/2 FPT
Discharge Flow @ 0 ft.: 68 gallons/min
Discharge Flow @ 0 ft.: 4080 gallons/hour
Discharge Flow @ 10 ft.: 52 gallons/min
Discharge Flow @ 15 ft.: 43 gallons/min
Discharge Flow @ 10 ft.: 3120 gallons/hour
