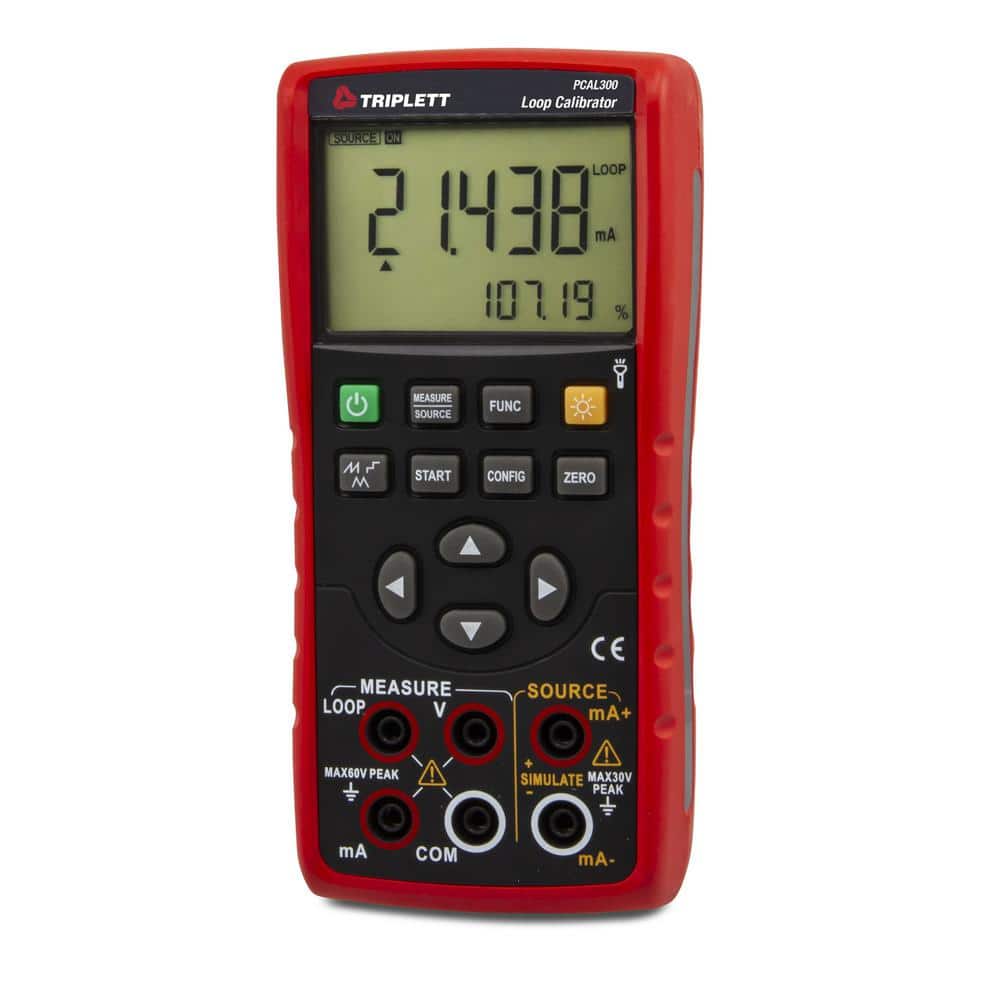

TRIPLETT Loop Process Calibrator

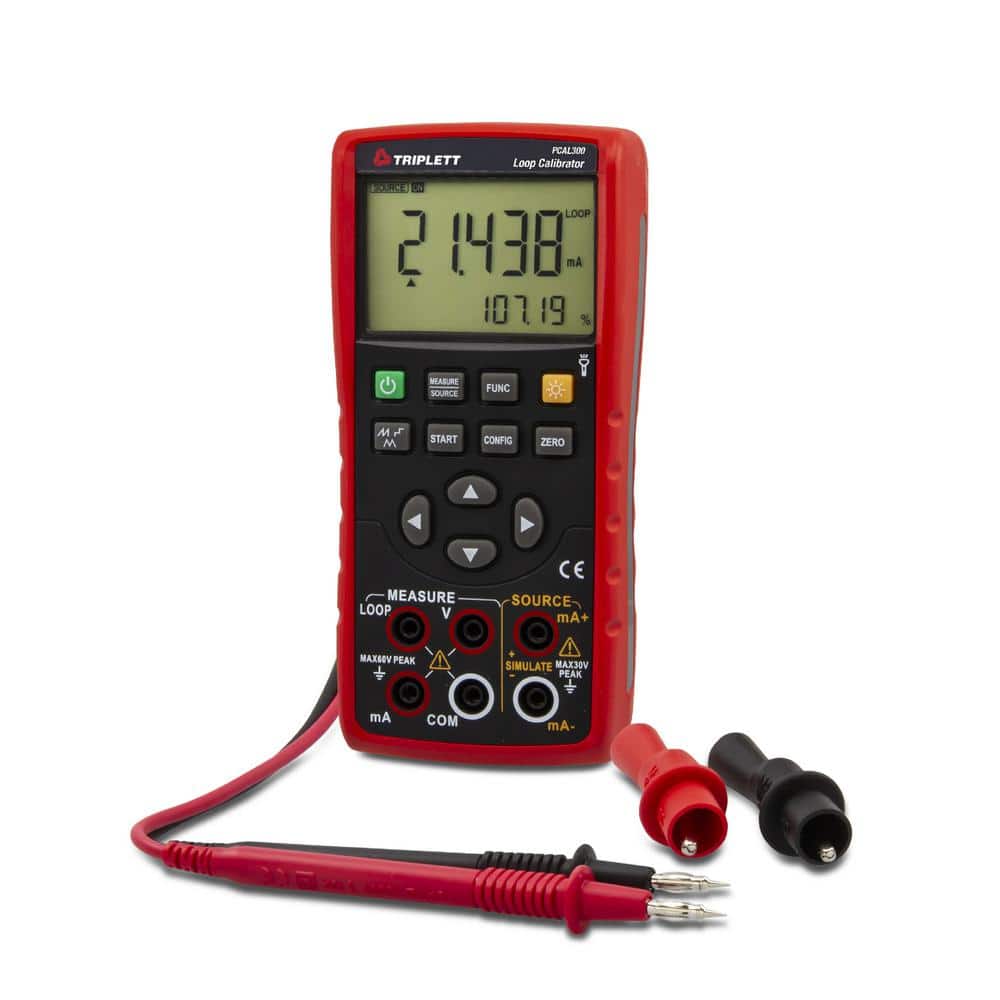

The TRIPLETT PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration can easily measure DC voltage/current and source DC mA current with an accuracy of 0.02%. It can simultaneously provide 24-Volt loop power to transmitter while conducting mA current measurement. in addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off and a built-in flashlight. Includes test leads, (3) AA batteries, (4) spare fuses and latch key (for opening battery door). 1-year warranty.

• Measures DC voltage/current & sources DC mA with 0.02% accuracy
• Provides 24V loop power while measuring mA current
• Features adjustable current span, step function, and flashlight
