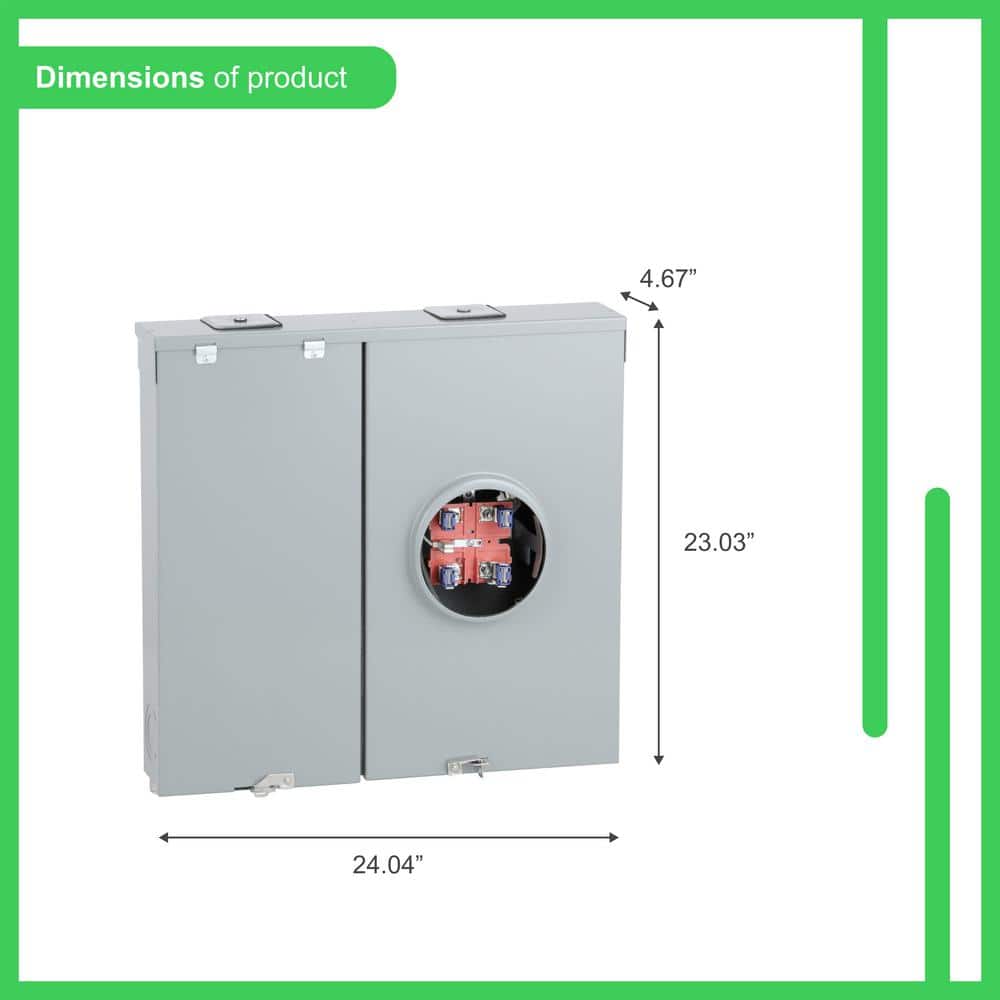

Square D 200 Amp Ringless Overhead or Underground Outdoor Main Breaker Meter Socket

The Square D 200 Amp Residential Ringless Meter Socket with no bypass surface mounts to provide for a single electric meter. It accommodates multiple wiring configurations for A size hub provision in the top end wall and a 2-1/2 in. maximum knockout in the bottom end-wall. This electrical meter box uses an aluminum bus, is single phase, three wires and features a NEMA 3R rated enclosure for outdoor use. This unit is ANSI certified and UL listed for use as service entrance equipment with a maximum load of 120/240 VAC. This 4-jaw meter socket is compatible with and neutral.

• Square D meter socket overhead/underground with 4-jaws
• A-type hub provision and NEMA type 3R enclosure for outdoor use
• Contact your local utility company to ensure requirements are met
