SKU SB1111

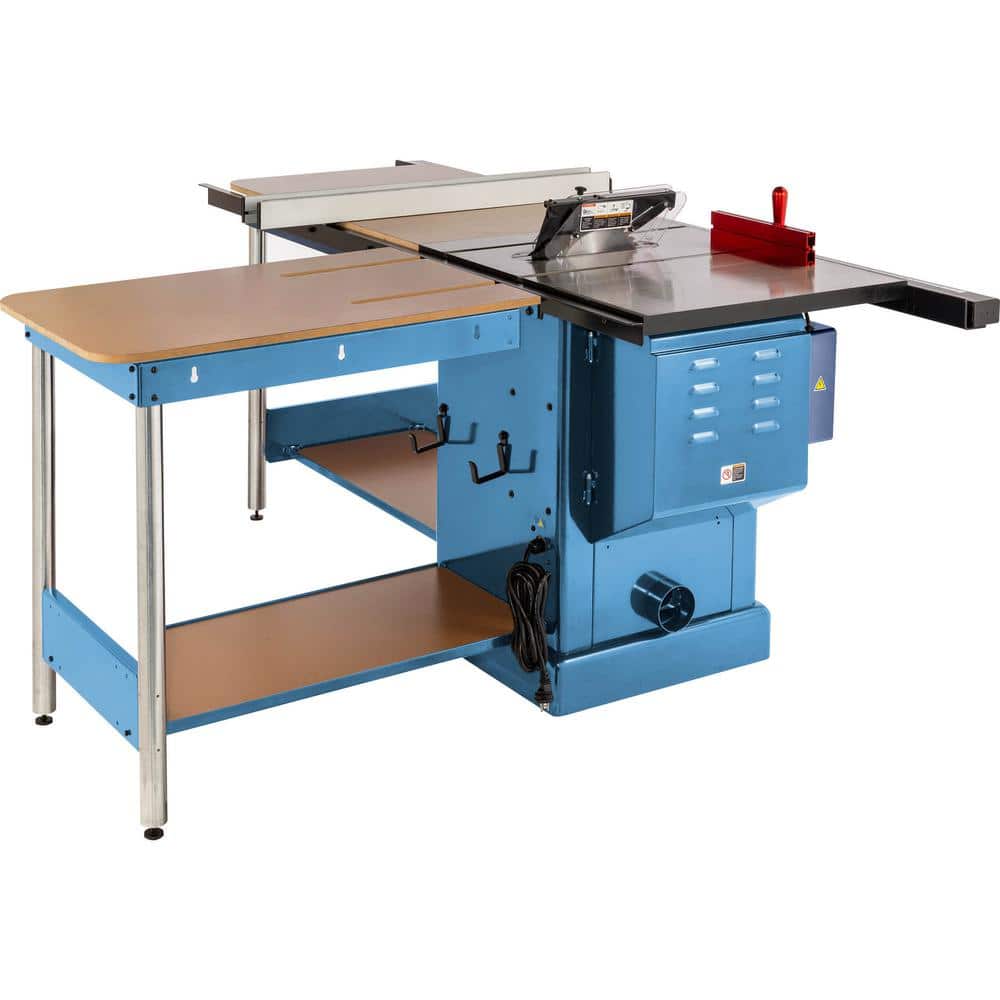

The high-precision South Bend SB1111 10 in. 3 HP Table Saw with Extension Rails is solidly built with a higher degree of accuracy, high-end components, and longer-lasting reliability than any other table saw on the market. The rip capacity of the SB1111 with the extension rails is 52 in. to the right and 18 in. left of the blade. A digital readout on the fence for width of cut, and 2 digital readouts on the control panel for blade height and tilt allow you to set up your cuts with absolute precision every time. The 1-1/2 in. thick, precision-ground cast-iron table mounted on the heavy-duty, one-piece steel cabinet to minimize vibration during operation. Additional features, such as a locking ON/OFF switch for safety, large cast-iron handwheels for easy adjustments, and large anodized handles on the miter gauge and rip fence add a professional touch. Made in an ISO 9001 factoryCSA certifiedSPECIFICATIONS:Motor: 3 HP, 220-Volt, single-phase, 13ARip capacity: 52 in. right, 18 in. left of bladeMax. depth of cut @ 90°: 3-1/8 in. Max. depth of cut @ 45°: 2-1/8 in. Distance from front of table to center of blade: 14-7/8 in. Floor-to-table height: 35-3/4 in. Arbor diameter: 5/8 in. Arbor speed: 4000 RPMMax. width of dado: 3/4 in. Dust port size: 4 in. Table size with extensions: 76 in. W x 65-5/8 in. D Footprint: 22 in. x 24 in. Overall dimensions: 91-1/2 in. W x 73 in. D x 43-1/2 in. HApproximate shipping weight: 742 lbs.
