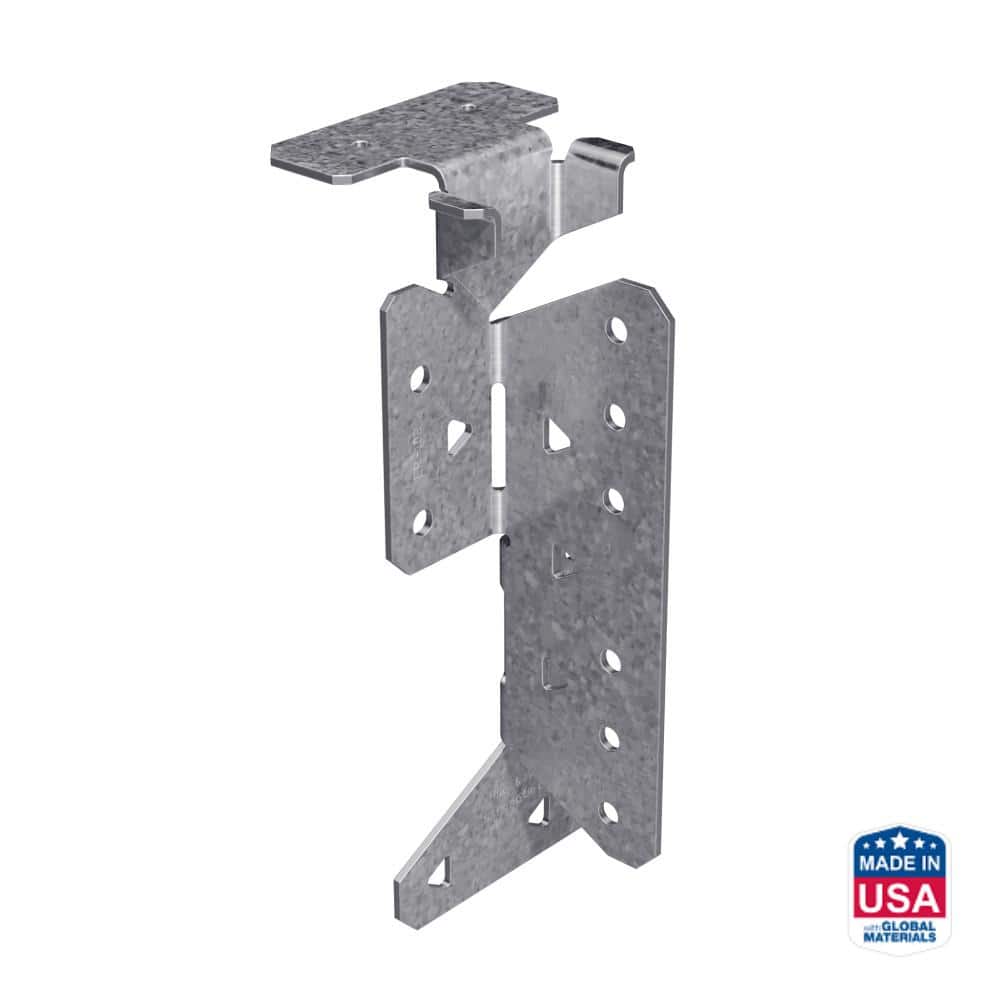

Simpson Strong-Tie S/HJCT Light Gauge Steel Joist Hanger

The simpson strong-tie S/HJCT is a heavy-duty skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.

• Adjust load capacity with min/max fill hole options
• Skewable design fits angles up to 45° left or right
• Horizontal tabs align top flange for easy install
