SKU T7B5X8Q9

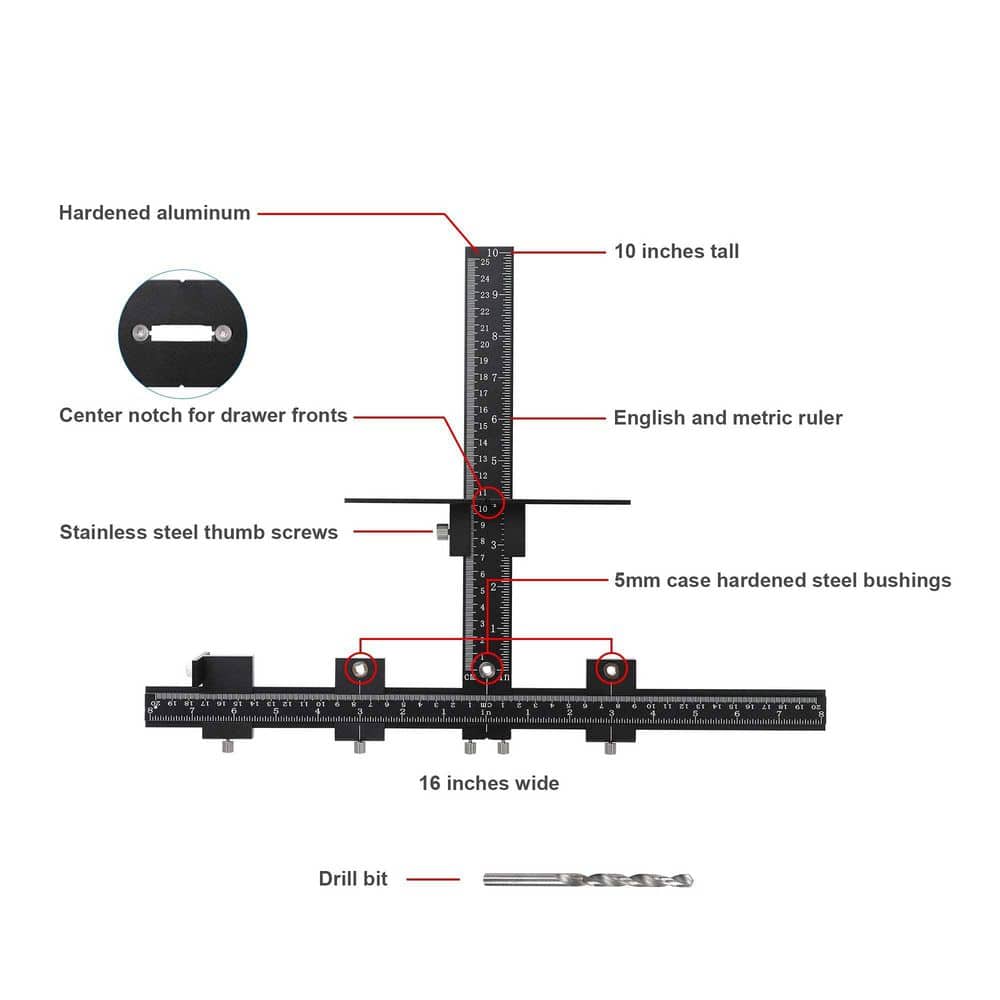

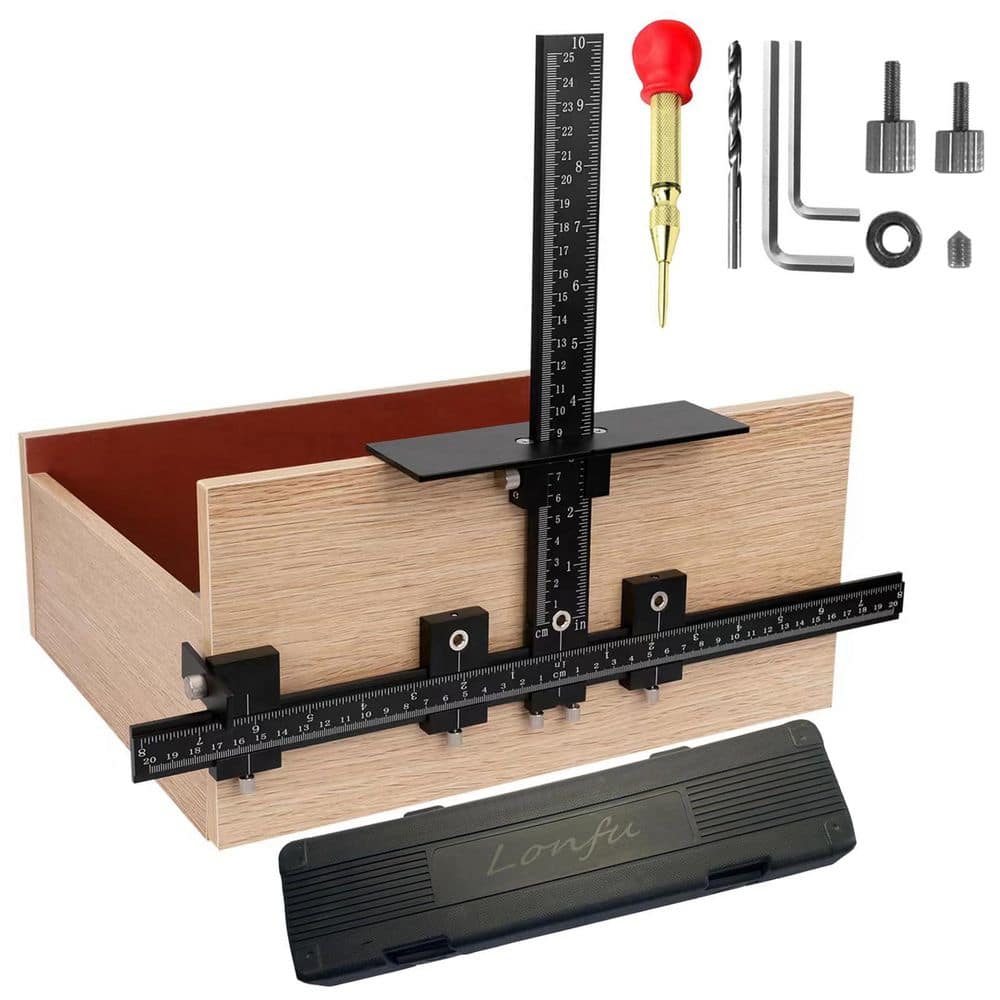

This cabinet handle jig is a precision alignment tool designed for consistent, repeatable drilling of mounting holes in cabinetry. It features CNC-machined aluminum construction with tight tolerances of ±0.0002 in. and is calibrated to 0.001 in. square for accurate hole placement. Interchangeable case-hardened steel bushings support over 10,000 drilling cycles and can be replaced to extend service life. The template adjusts to accommodate various handle center-to-center distances, making it suitable for both standard and custom hardware installations. Its symmetrical design allows quick flipping between right- and left-hand door setups without recalibration. The jig mounts securely to cabinet doors or drawer fronts using integrated clamping features or double-sided tape. No power tools are required for setup—alignment relies entirely on mechanical registration and physical stops. It is intended for use with standard twist drill bits and common handheld drills, supporting both professional cabinetmakers and experienced DIY woodworkers.
