SKU R1J2D2X4

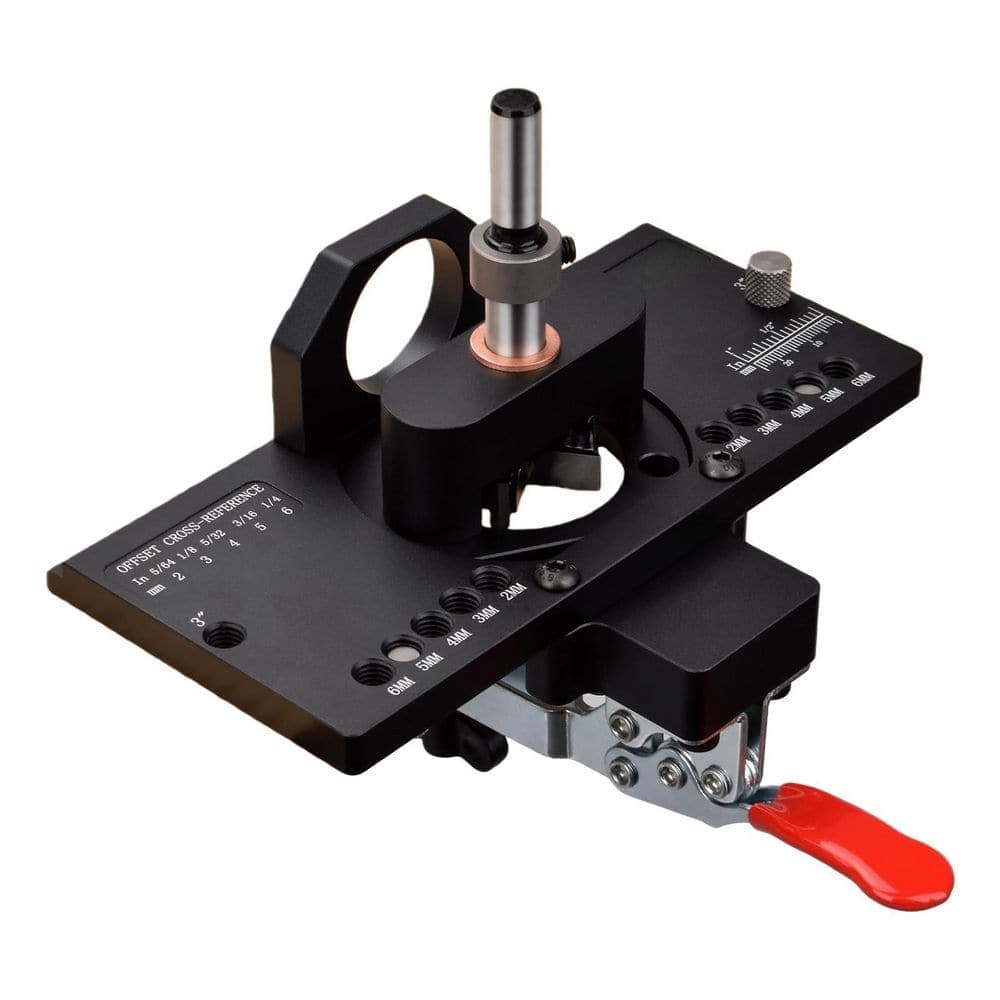

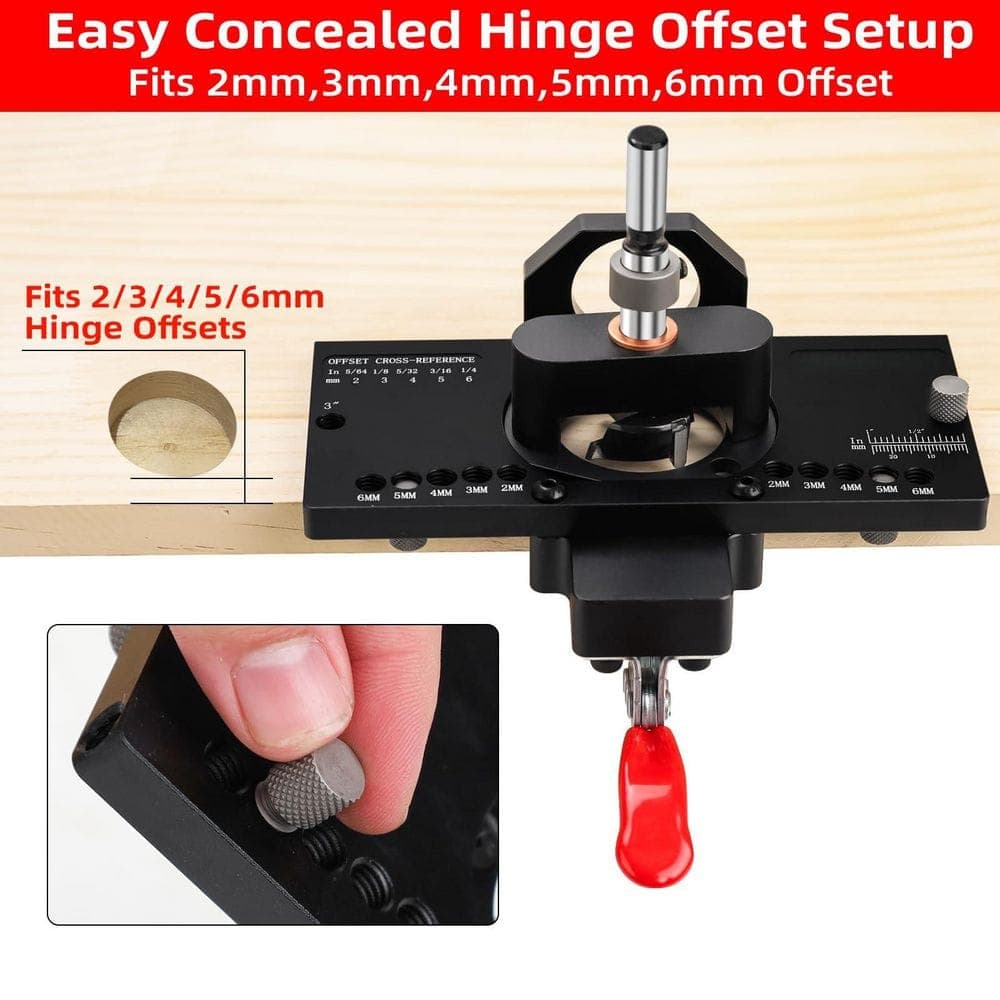

The all-metal cabinet hinge jig is constructed from high-quality aluminum alloy for long-term durability and precision use, outperforming plastic alternatives. Featuring built-in double bearings, it enables smooth and consistent drilling for 35mm concealed hinge cup holes. A carbide-tipped bit ensures clean, accurate cuts in wood, while the integrated dust bracket supports a 1-3/8 inch vacuum hose to maintain a clean worksite. The jig accommodates various hinge offsets from 2mm to 6mm and includes drill guides for multiple screw hole patterns, making it compatible with most hidden hinges. Depth adjustment is tool-free, allowing quick setup between 0 and 0.6 inches, ideal for standard 1/2 inch overlay applications. The quick clamp mechanism securely fastens the jig to the workpiece without extra tools, improving efficiency and reducing setup time. Designed for accuracy and ease of use, this jig functions like a drill press but with greater portability and convenience in cabinetry projects.
