SKU NHE-CPDR355

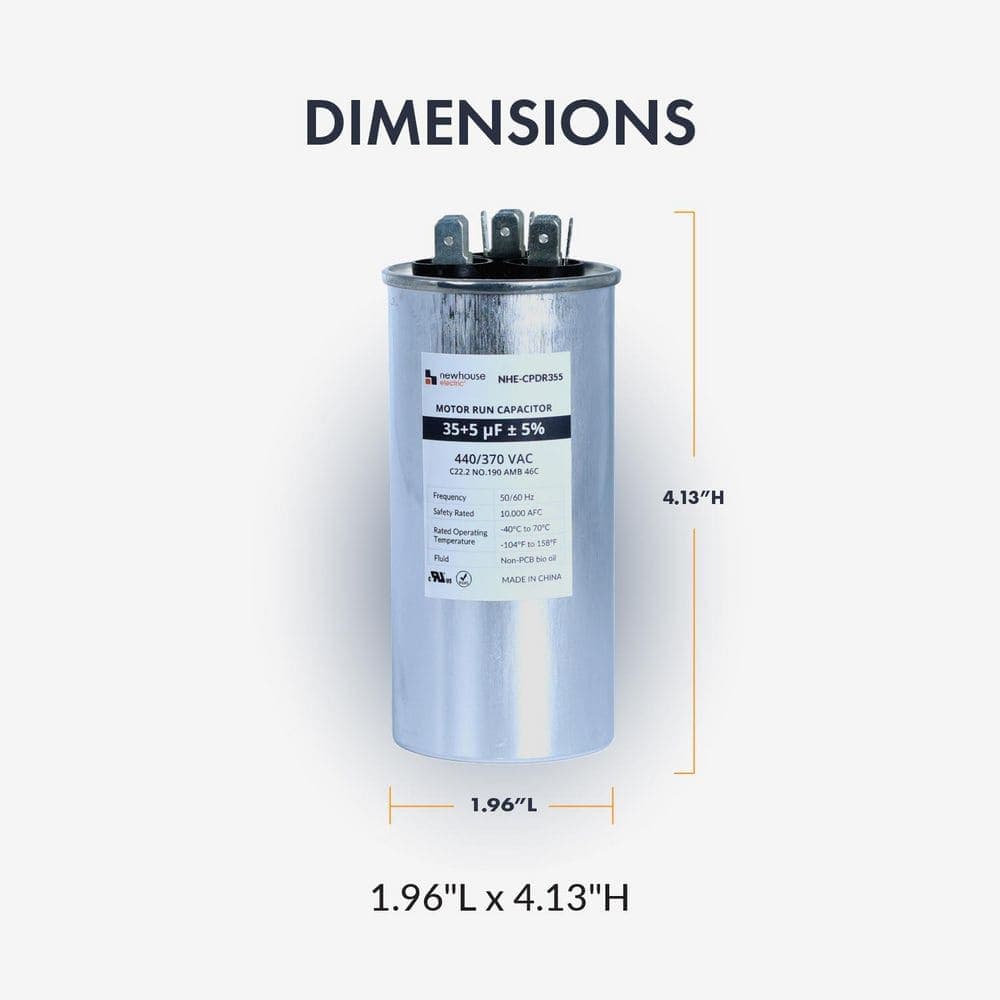

Air conditioner and heat pump repairs require a capacitor that matches the stated electrical rating . This 35/5 MFD round dual run model serves as an AC dual run capacitor replacement with a 440/370 VAC rating for HVAC service work. The dual run configuration supports air conditioner and heat pump service applications while keeping the required capacitance visible when you replace a failed part. The 35/5 MFD value and 440/370 VAC rating help you match system requirements with a clear specification reference. Protected 10,000 AFC construction adds a defined current protection detail for routine HVAC replacement conditions. The operating range from -40 to 70°C supports service use across varied seasonal temperatures. The internal design uses non-PCB oil, low dissipation, and high insulation to promote stable electrical behavior over time. The capacitor is recognized to UL 810 and references EIA-456-A and IEC 60252-1 standards for specification-based replacement decisions. The overall dimensions are 1.96 in. x 4.13 in. so you can compare the published size against the existing part before installation. This capacitor fits air conditioner and heat pump replacement work when the required MFD value, voltage rating, and form factor match the equipment specification. The stated rating, temperature range, protective current detail, and published dimensions keep this part grounded in real HVAC repair and planned replacement work.
