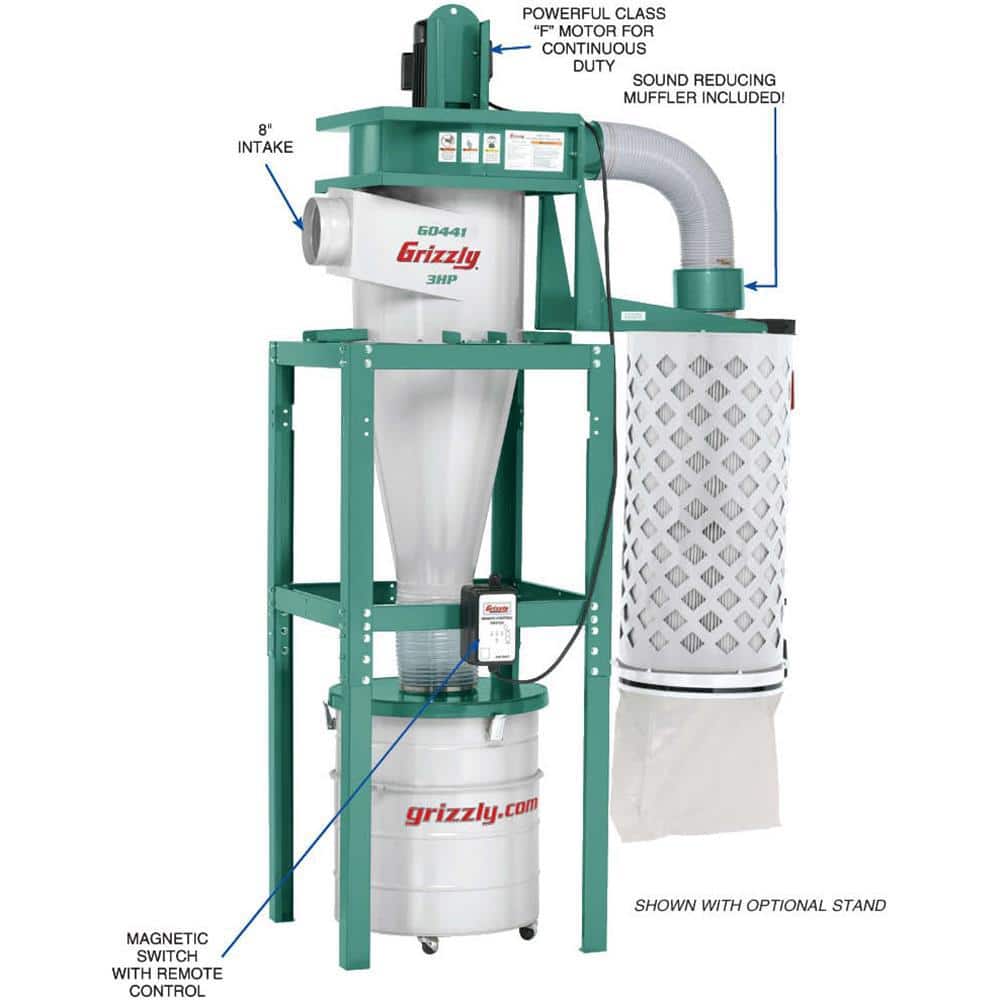

Grizzly Industrial 3 HP Cyclone Dust Collector

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55 Gal. steel drum. The fine dust travels past the 15-1/2 in. Dia impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 microns to 2 microns in size. The cartridge filter is pleated to provide 113 sq. ft. of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11-Gauge steel blower housing, 14-Gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class "F" motor and a magnetic switch with remote control device. The optional steel legs and support frame (H7509) also make setup quick and easy.

• 3 HP single-phase motor runs reliably with minimal maintenance
• Base constructed of pre-formed steel for durability
• Pleated cartridge filter facilitates efficient air movement
