SKU CMM-2055

Commercial Electric 400 Amp AC True RMS Digital Clamp Meter with Temperature

The Commercial Electric 400 Amp AC True RMS Digital Clamp Meter with Temperature (CMM-2055) is a versatile meter designed to measure a variety of electrical parameters. It uses a clamp to measure AC current and a non-contact voltage tester (NCVT), while also utilizing test leads to measure both AC and DC voltage, resistance, and continuity. For temperature measurements, it is equipped with a thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology, ensuring high accuracy in readings. Additionally, its backlit LCD screen facilitates easy viewing even in low light conditions, making it a practical tool for diverse testing scenarios.

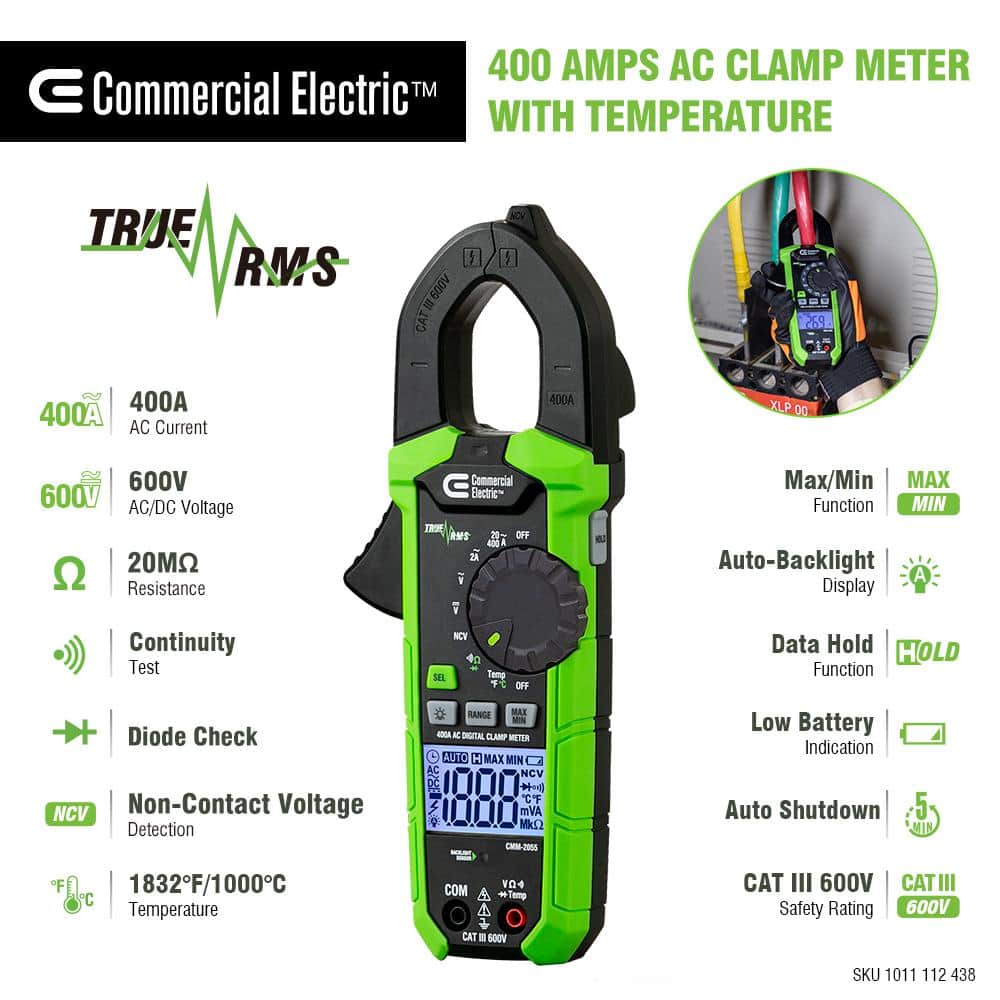

400 Amps clamp meter with temperature and NCV detection
Up to 600A AC current and 600-Volt AC/DC voltage measurement
Auto-sensing backlight for user-friendly backlight switch

Specifications

Range: Auto Ranging
Model #: CMM-2055
Features: Audible Alert,Auto Shutoff,Backlit,Interchangeable Leads,Low Battery Indicator

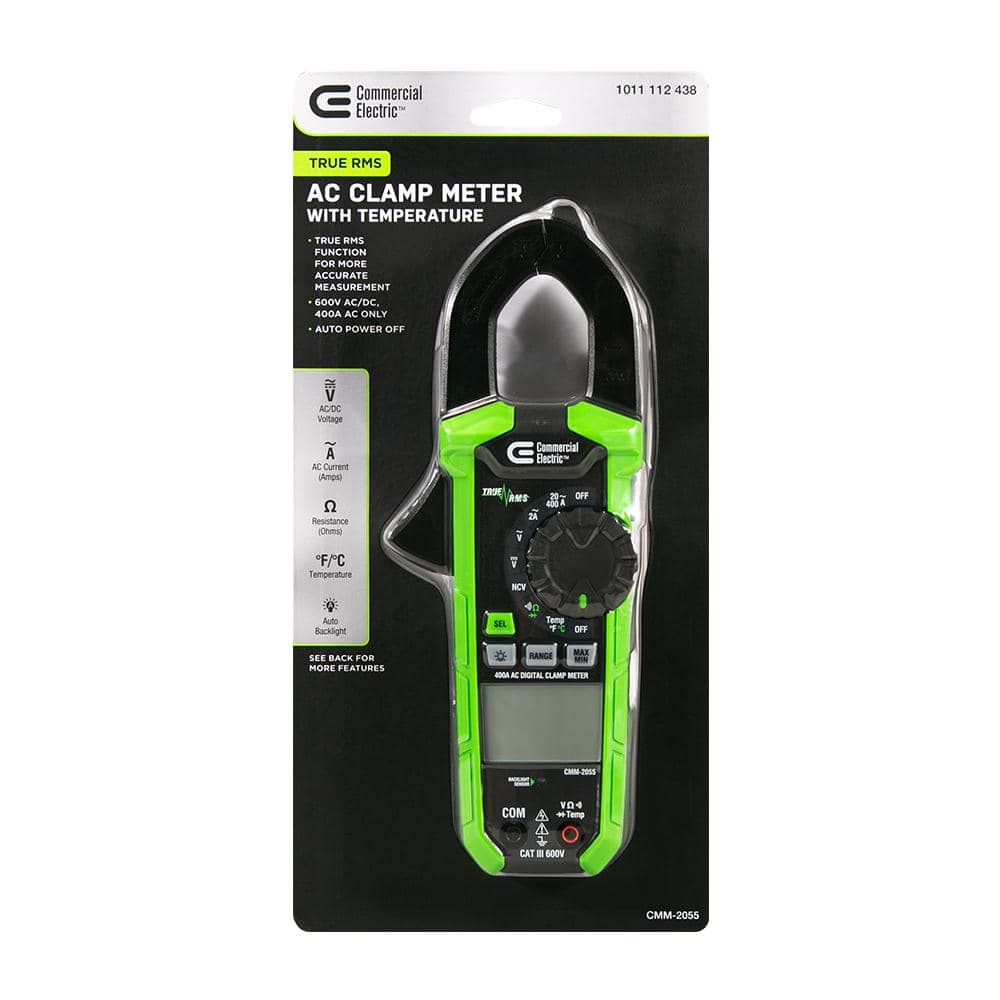

Included: Batteries,Case,Test Leads
Internet #: 329388219
Returnable: 90-Day
Store SKU #: 1011112438
Power Source: Battery Operated
Category Rating: III
Functions Measured: Amperage,Capacitance,Continuity,Diodes,Resistance,Voltage
Maximum AC Voltage: 600
Maximum DC Voltage: 600
Number of Functions: 8
Product Depth: 3.46 in
Product Width: 5.59 in
Accuracy Measurement: True-RMS
Manufacturer Warranty: 1 year warranty
Maximum AC Current: 400 A
Maximum Frequency: 0 MHz
Maximum Resistance: 20M
Certifications and Listings: ETL Listed,FCC Listed,UL Listed
