SKU Alpha-MIG190SYN

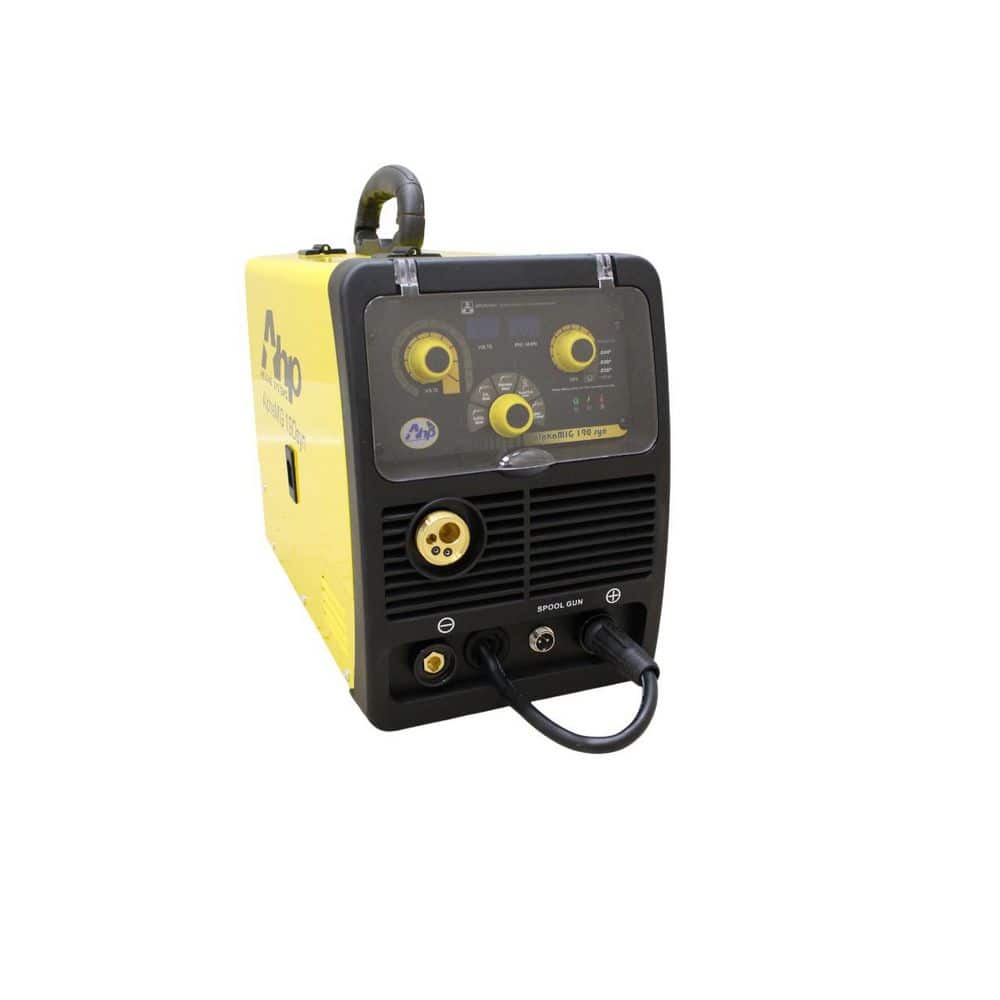

The new AlphaMIG 190 SYN is perfect for small and medium-sized shops as a "daily driver". The unit outputs up to 200 amps and features a duty cycle of 25% at 180A, which makes it perfect for welding anything from sheet metal and roll cages and can handle heavier welding chores up to 3/16 in. plate on a daily basis. Heavier plate can easily be welded multi-pass. The unit also supports spool gun use for aluminum, and can also feed aluminum from the standard gun if the optional polymer liner is used.The synergic function makes setup an easy task for both beginners and pros with selecting the metal thickness and the wire diameter on the panel and the unit will do the rest. Of course, the design also allows the user to fine tune the settings if the machine-provided programming doesn't perfectly fit.The unit can hold up either a 4" or 8" spool for most common wire sizes from .023" to .035" diameter.The AlphaMIG 190 SYN isn't just a shop unit. The compact size and dual voltage design (operates on 120V or 240V 1 phase input) is perfect for a go-anywhere use.Input Voltage: 120/240V 50/60HzOCV: 70V120V Inrush (I1max): 28.7A240V Inrush (I1max): 28A120V Rated (I1eff): 15A240V Rated (I1 eff): 15ADrive Roll Sizes: .023"-.030" Stock. .035" optionalMax Wire speed: 425 IPMOutput Range 120V: 30-120A/15.5V- 20VDuty Cycle Rating 120V: 25% @ 120A/20.0V (Rated @ 40° C)Output Range 240V: 30-200A/15.5V-24VDuty Cycle Rating 240V: 25% @ 180A/23V (Rated @ 40°C)Qty. 1 MIG Ar gas regulator
